Revolutionizing Crushing: The Vertical Shaft Impactor (VSI) by Metal Solutions

Metal Solutions’ VSI redefines crushing with innovative design and advanced rotor tech, transforming material processing and setting new benchmarks in efficiency, versatility, and sustainability.

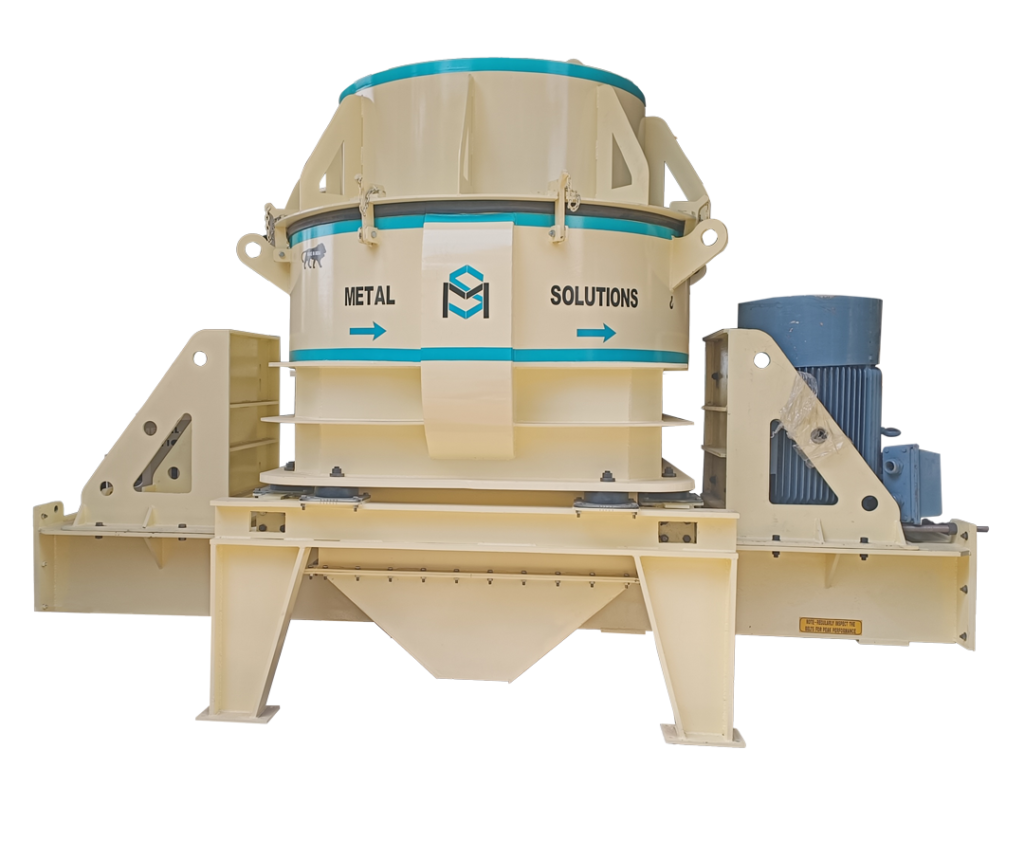

Vertical Shaft Impactor (VSI)

The Vertical Shaft Impactor (VSI) by Metal Solutions represents a pinnacle in crushing technology, engineered to redefine efficiency and precision in material processing. This innovative product combines advanced design with cutting-edge features to deliver superior performance across a variety of applications.

  • Vertical Shaft Design
  • Rotor Technology:
  • Variable Feed Control
  • Autogenous Crushing
  • Closed Rotor and Rock Shelf Configuration
  • User-Friendly Operation

Add Your Heading Text Here

Model Name 2010 2412 3608 3610 4204 2415 2418 3015 3020 3024 3628 4232 4236
Machine Size in mm
500 x 250
600 x 300
900 x 200
900 x 250
1050 x 100
600 x 375
600 x 450
750 x 375
750 x 500
750 x 600
900 x 700
800 X 1050
900 X 1050
Motor (Hp)
30 HP
50 HP
50 HP
50 HP
40 HP
50 HP
60 HP
50 HP
60 HP
75 HP
100 HP
112.5 KW
112.5 KW
Setting Range
in mm
15~50
20~75
12~25
20~30
8~20
35~100
45~100
40~100
50~100
50~100
90~125
90~250
100-250
Capacity in TPH
15~25
21~38
28~32
28~32
15~20
28~58
28~65
45~75
65~90
65~100
95~140
150~200
175-225

Why Do Yoga?

Sed egestas, sapien a pellentesque euismod, odio nibh dignissim nulla, euismod lacinia arcu turpis gravida tortor. Donec tempor enim ut sollicitudin pulvinar. Nulla sit amet blandit lectus.

  • You can always control what goes on inside
  • Yoga is a practice of quieting the mind
  • Yoga is a fountain of youth
Read More

Vertical Shaft Impactor Models and Specifications

MODEL

MAXIMUM FEED
SIZE (MM)

CAPACITY
(TPH)

POWER
(HP)

MSV 650

20

25-40

75-100

MSV 750

25

60-110

100-150

MSV 850

30

120-160

150-220

MSV 1050

35

170-200

225-300

Vertical Shaft Impactor Models and Specifications

Model No. Power Throughput Capacity Max. Feed Size
MSV 650 75-100 25-40 20
MSV 750 100-150 60-110 25
MSV 850 150-220 120-160 30
MSV 1050 225-300 170-200 35
MSV 1250 250-350 200-250 40
