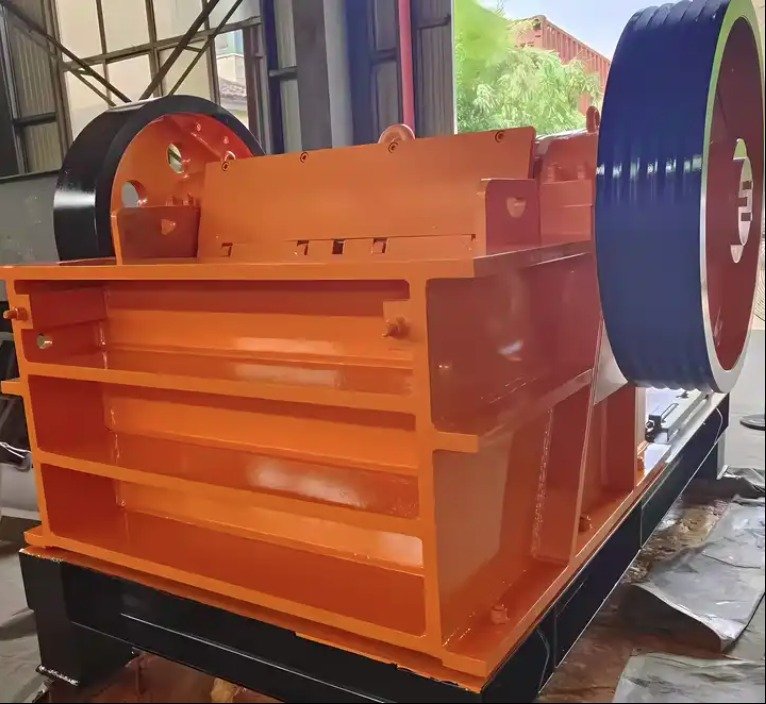

Single Toggle Jaw Crusher
Crusher Size | Feeding Size (Inches / mm) | Production/Hr (Ton) | HP Required | RPM |
Secondary Crushers - 20mm (3/4") | ||||
16" x 10" | 8"200 | 10 - 12 | 30 | 360 |
22" x 9" | 6"150 | 16 - 20 | 40 | 360 |
30" x 9" | 7"175 | 20 - 24 | 50 | 360 |
36" x 8" | 6"150 | 28 - 32 | 60 | 360 |
20" x 12" | 10"250 | 18 - 20 | 40 | 360 |
Secondary Crushers - 40mm (1 1/2") | ||||
24" x 14" | 12"300 | 40 - 48 | 40 | 360 |
30" x 15" | 14"360 | 40 - 48 | 50 | 340 |
Primary Crushers | ||||
30" x 20" | 18"450 | 40 - 48 | 50 | 320 |
30" x 24" | 22"550 | 56 - 64 | 60 | 320 |
Super Primary Crushers | ||||
36" x 24" | 22"550 | 75 approx | 75 | 270 |
36" x 30" | 28"700 | 100 approx | 100 | 270 |
48" x 36" | 34"850 | 150 approx | 150 | 26 |
MODEL | FEED OPENING | MAXIMUM FEEDING | DISCHARGE OPNING | CAPACITY (T/H) | REV | POWER (KW) |
24X12 | 300X600 | 250 | 45-65 | 25-35 | 220 | 37.5 |
24X15 | 370X600 | 300 | 55-75 | 30-40 | 280 | 37.5 |
24X18 | 445X600 | 350 | 55-75 | 35-45 | 280 | 37.5 |
30X15 | 370X750 | 310 | 55-85 | 40-60 | 280 | 45 |
32X20 | 500X800 | 425 | 55-105 | 60-80 | 250 | 45 |
32X24 | 600X800 | 500 | 55-105 | 60-85 | 250 | 45 |
36X24 | 600X900 | 500 | 65-120 | 80-100 | 250 | 75 |
36X28 | 700X900 | 630 | 85-150 | 90-110 | 250 | 75 |
42X32 | 800X1050 | 700 | 90-250 | 150-200 | 230 | 112.5 |
42X36 | 900X1050 | 800 | 100-250 | 175-225 | 230 | 112.5 |
