Primary Jaw Crusher

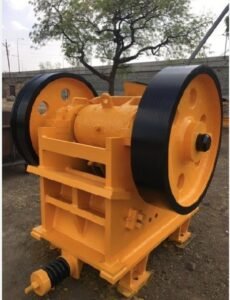

Single Toggle Jaw Crusher

Metal Solutions’ Jaw Crushers are at the forefront of efficient and reliable material crushing. Designed for various applications, our Jaw Crushers deliver high performance and durability, making them a preferred choice in the stone crushing industry.

Crusher Size Feeding Size (Inches / mm) Production/Hr (Ton) HP Required RPM
Secondary Crushers - 20mm (3/4")
16" x 10" 8" / 200 10 - 12 30 360
Secondary Crushers - 40mm (1 1/2")
24" x 14" 12" / 300 40 - 48 40 360
Primary Crushers
30" x 20" 18" / 450 40 - 48 50 320
Super Primary Crushers
36" x 24" 22" / 550 75 approx 75 270

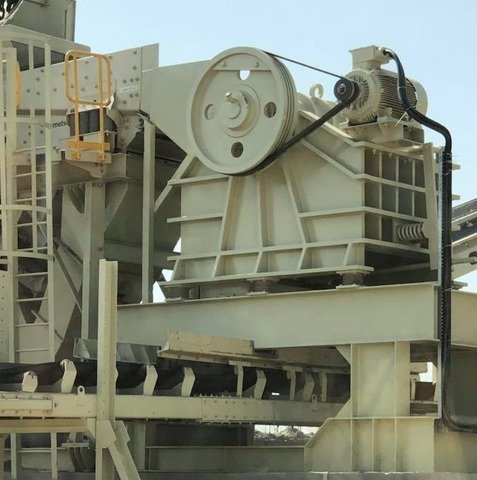

Jaw crushers are mainly used as primary crusher to produce material that can be
transported by belt Conveyors to the next crushing stages. The crushing process takes place
between a fixed jaw and a moving jaw. The moving jaw dies are mounted on a pitman that
has a reciprocating motion.

MODEL

FEED OPENING
(MM)

MAXIMUM FEEDING
(MM)

DISCHARGE OPNING
(MM)

CAPACITY (T/H)

REV
(R/MIN)

POWER (KW)

24X12

300X600

250

45-65

25-35

220

37.5

24X15

370X600

300

55-75

30-40

280

37.5

24X18

445X600

350

55-75

35-45

280

37.5

30X15

370X750

310

55-85

40-60

280

45

32X20

500X800

425

55-105

60-80

250

45

32X24

600X800

500

55-105

60-85

250

45

36X24

600X900

500

65-120

80-100

250

75

36X28

700X900

630

85-150

90-110

250

75

42X32

800X1050

700

90-250

150-200

230

112.5

42X36

900X1050

800

100-250

175-225

230

112.5
