Explore Jaw Crushers: Precision in Crushing Technology

Discover the precision and efficiency of Metal Solutions’ Jaw Crushers. Explore a range designed for diverse applications, delivering top-notch performance and durability in stone crushing.

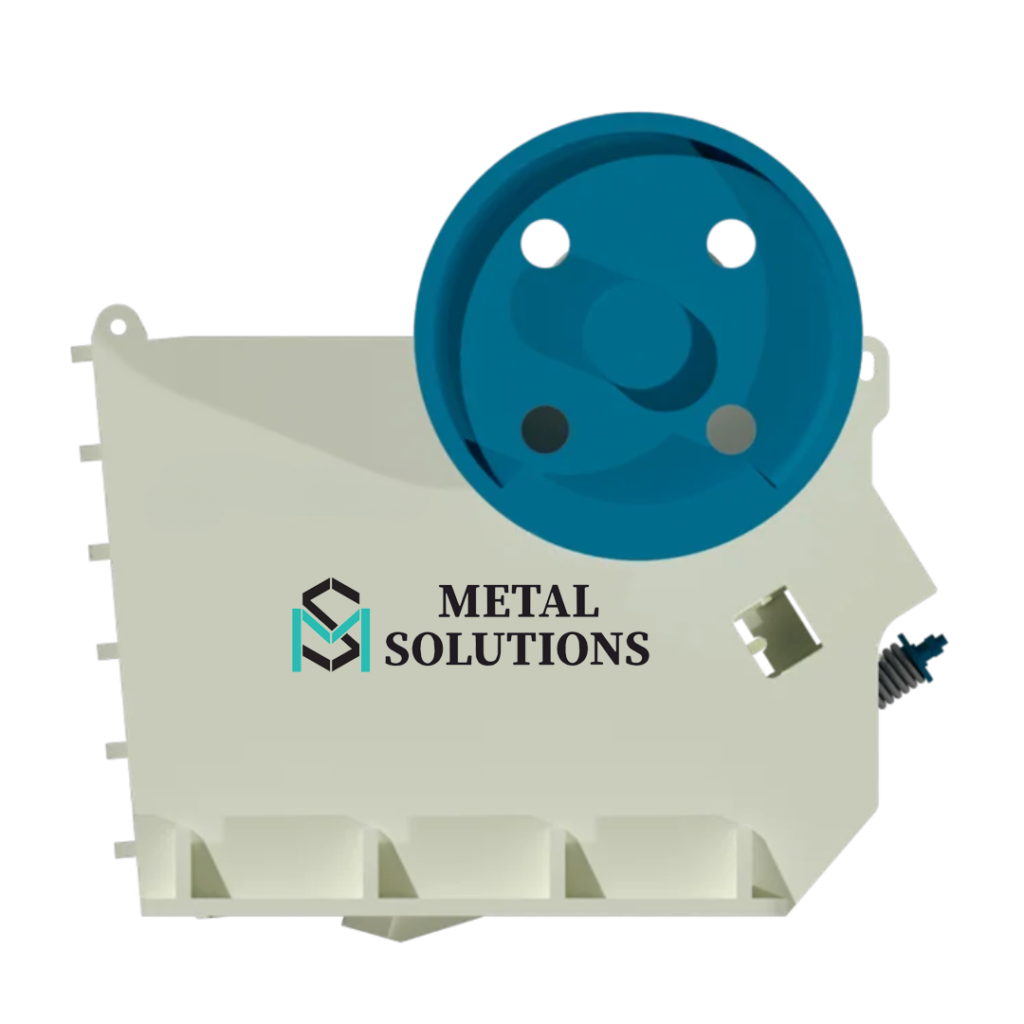

Jaw Crusher

Metal Solutions’ Jaw Crushers are at the forefront of efficient and reliable material crushing. Designed for various applications, our Jaw Crushers deliver high performance and durability, making them a preferred choice in the stone crushing industry.

MS Jaw Crushers are Powerful and Robust, Eccentric Shaft.
Unique Devices such as Organized Bearings
Housed in Shielded and Protected Cartridges
Wide range from 42 x 36 (Primary) to 42 x 8 (Secondary)
Trouble free performance increasing machine Lifespan
Easy maintenance & Low operating cost

MODEL	FEED OPENING (MM)	MAXIMUM FEEDING (MM)	DISCHARGE OPNING (MM)	CAPACITY (T/H)	REV (R/MIN)	POWER (KW)
24X12	300X600	250	45-65	25-35	220	37.5
24X15	370X600	300	55-75	30-40	280	37.5
24X18	445X600	350	55-75	35-45	280	37.5
30X15	370X750	310	55-85	40-60	280	45
32X20	500X800	425	55-105	60-80	250	45
32X24	600X800	500	55-105	60-85	250	45
36X24	600X900	500	65-120	80-100	250	75
36X28	700X900	630	85-150	90-110	250	75
42X32	800X1050	700	90-250	150-200	230	112.5
42X36	900X1050	800	100-250	175-225	230	112.5

Add Your Heading Text Here

Model Name	2010	2412	3608	3610	4204	2415	2418	3015	3020	3024	3628	4232	4236
Machine Size in mm	500 x 250	600 x 300	900 x 200	900 x 250	1050 x 100	600 x 375	600 x 450	750 x 375	750 x 500	750 x 600	900 x 700	800 X 1050	900 X 1050
Motor (Hp)	30 HP	50 HP	50 HP	50 HP	40 HP	50 HP	60 HP	50 HP	60 HP	75 HP	100 HP	112.5 KW	112.5 KW
Setting Range in mm	15~50	20~75	12~25	20~30	8~20	35~100	45~100	40~100	50~100	50~100	90~125	90~250	100-250
Capacity in TPH	15~25	21~38	28~32	28~32	15~20	28~58	28~65	45~75	65~90	65~100	95~140	150~200	175-225
